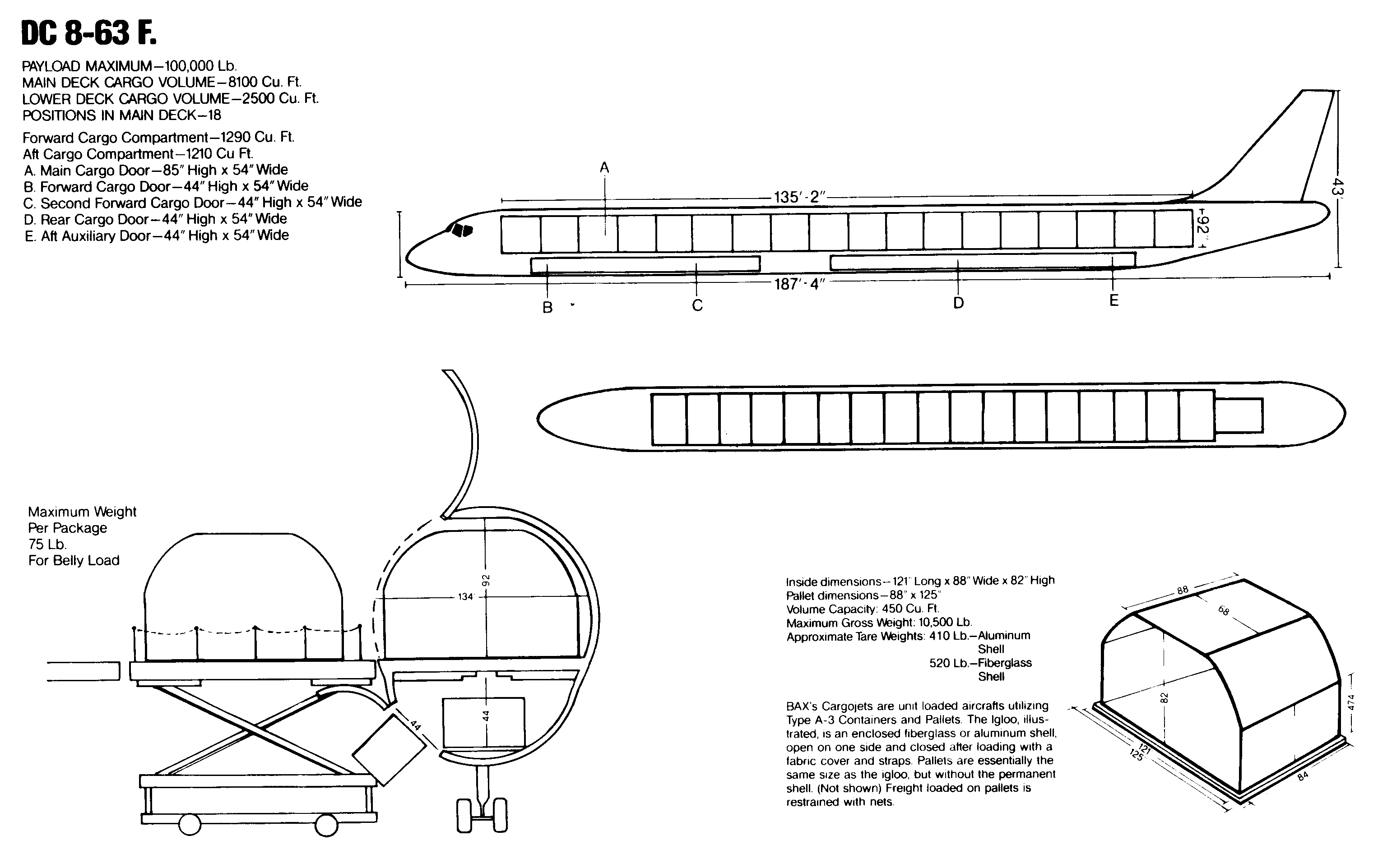

DC 8-63F AIR FREIGHTER DIMENSIONS

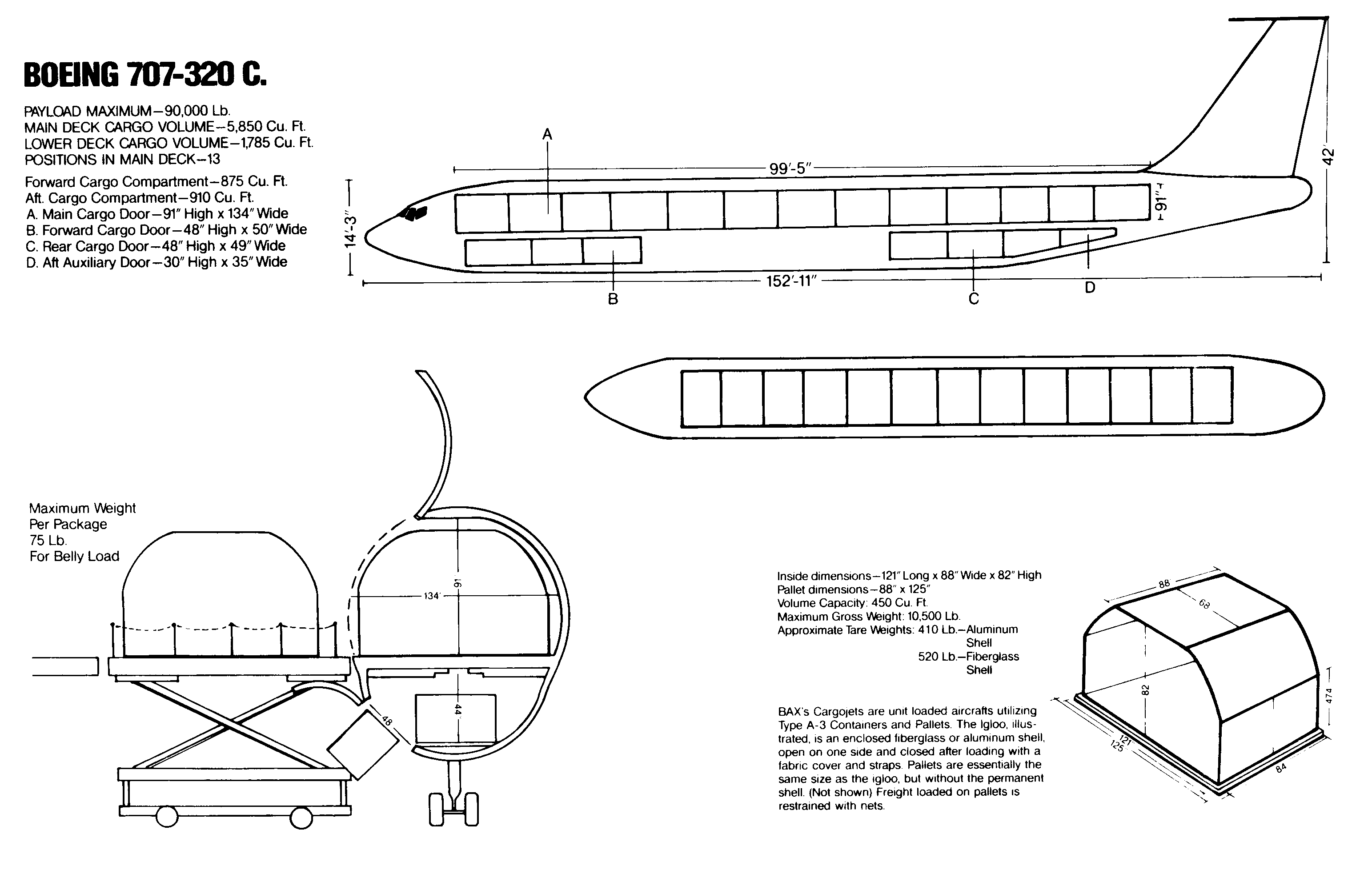

BOEING 707-320C AIR FREIGHTER DIMENSIONS

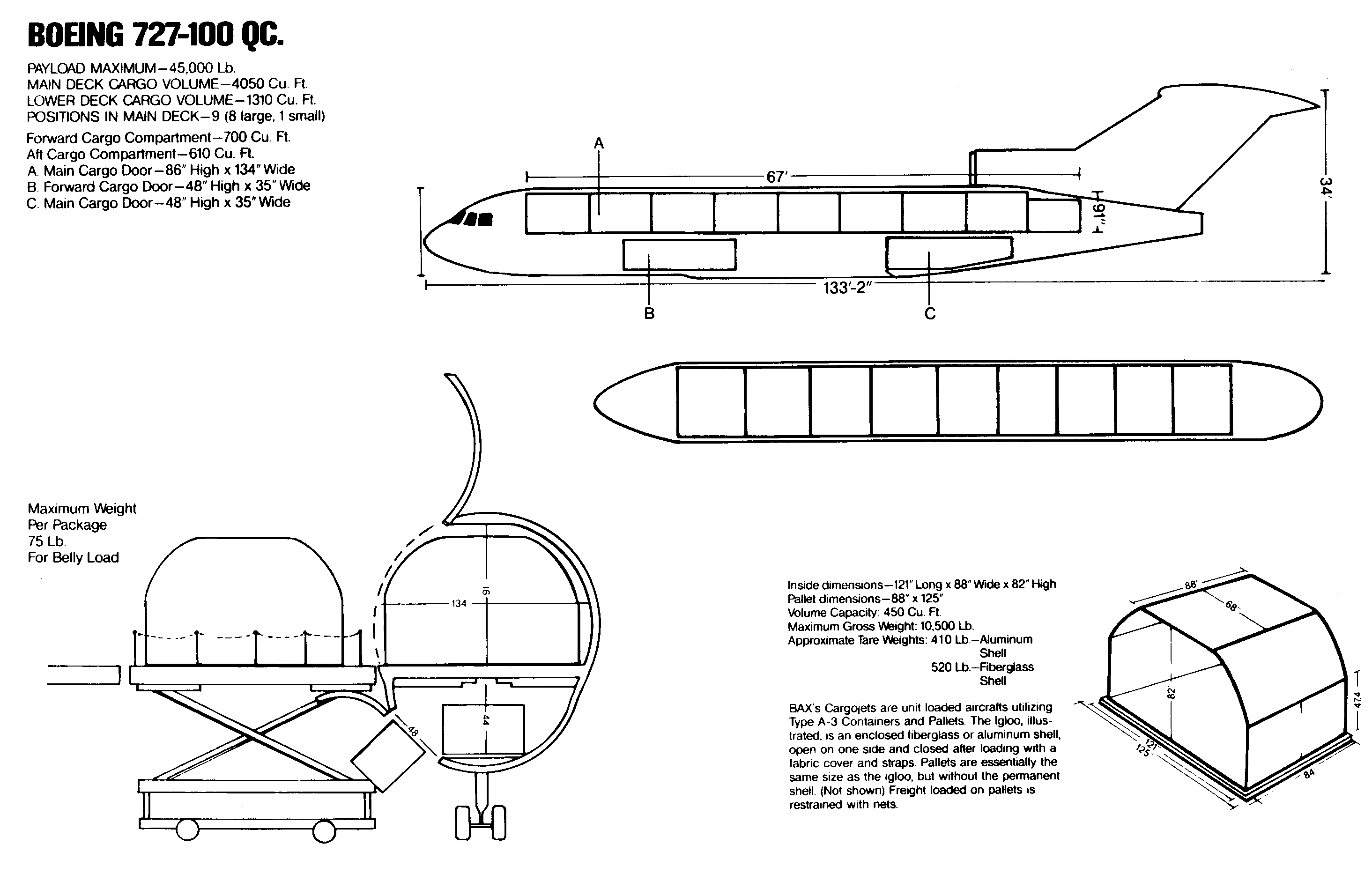

BOEING 727-100 QC AIR FREIGHTER DIMENSIONS

TYPICAL FORK TRUCK

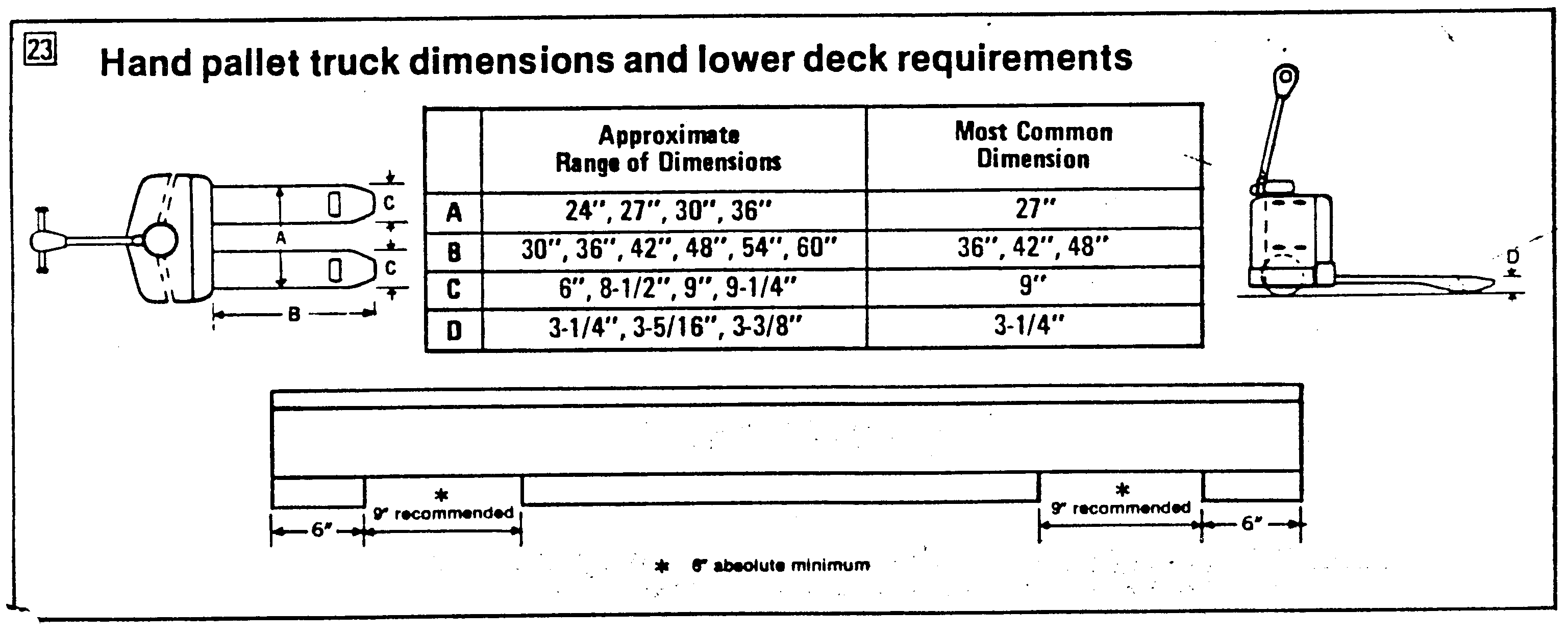

TYPICAL PALLET JACK

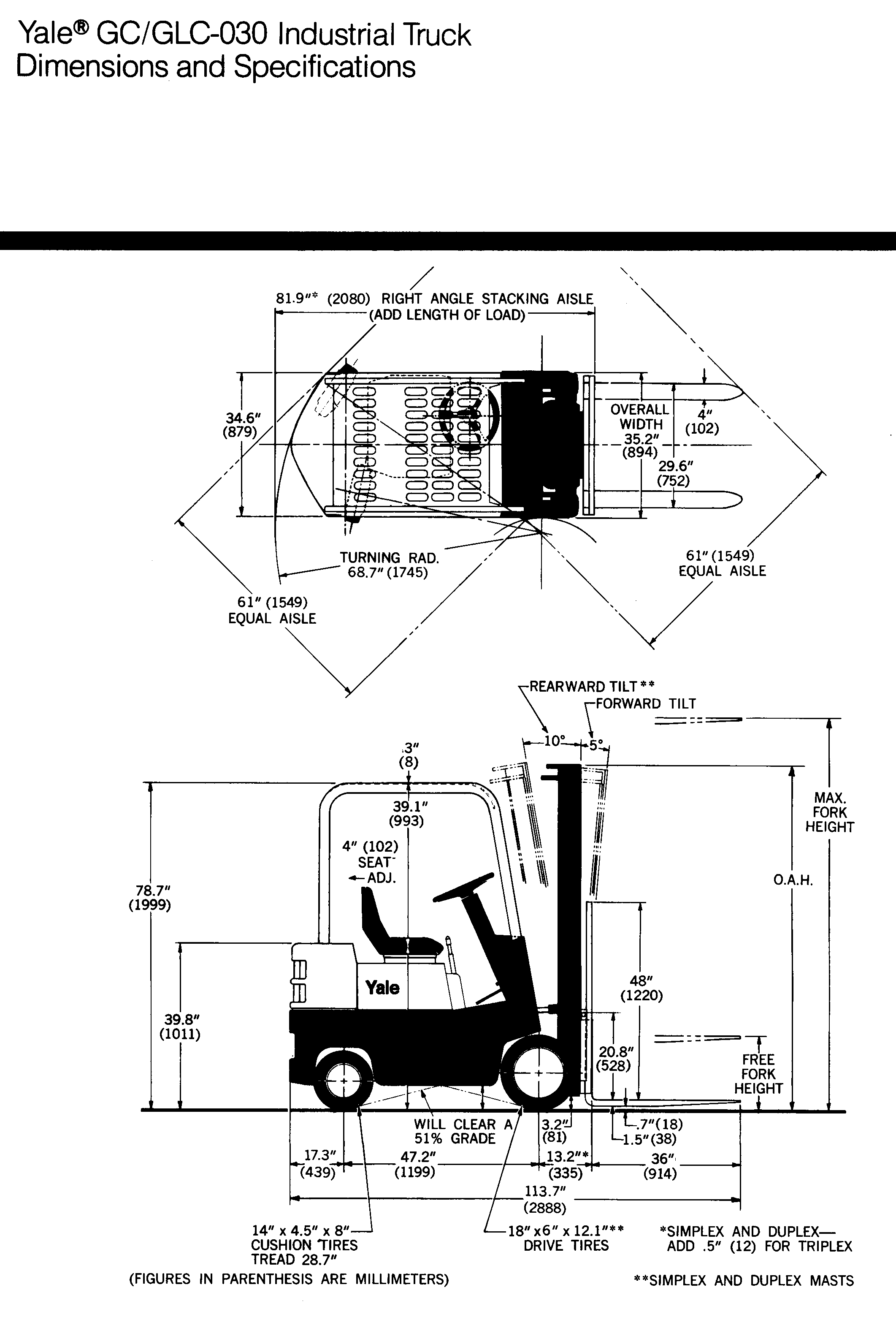

TYPICAL FORK TRUCK SPECIFICATIONS

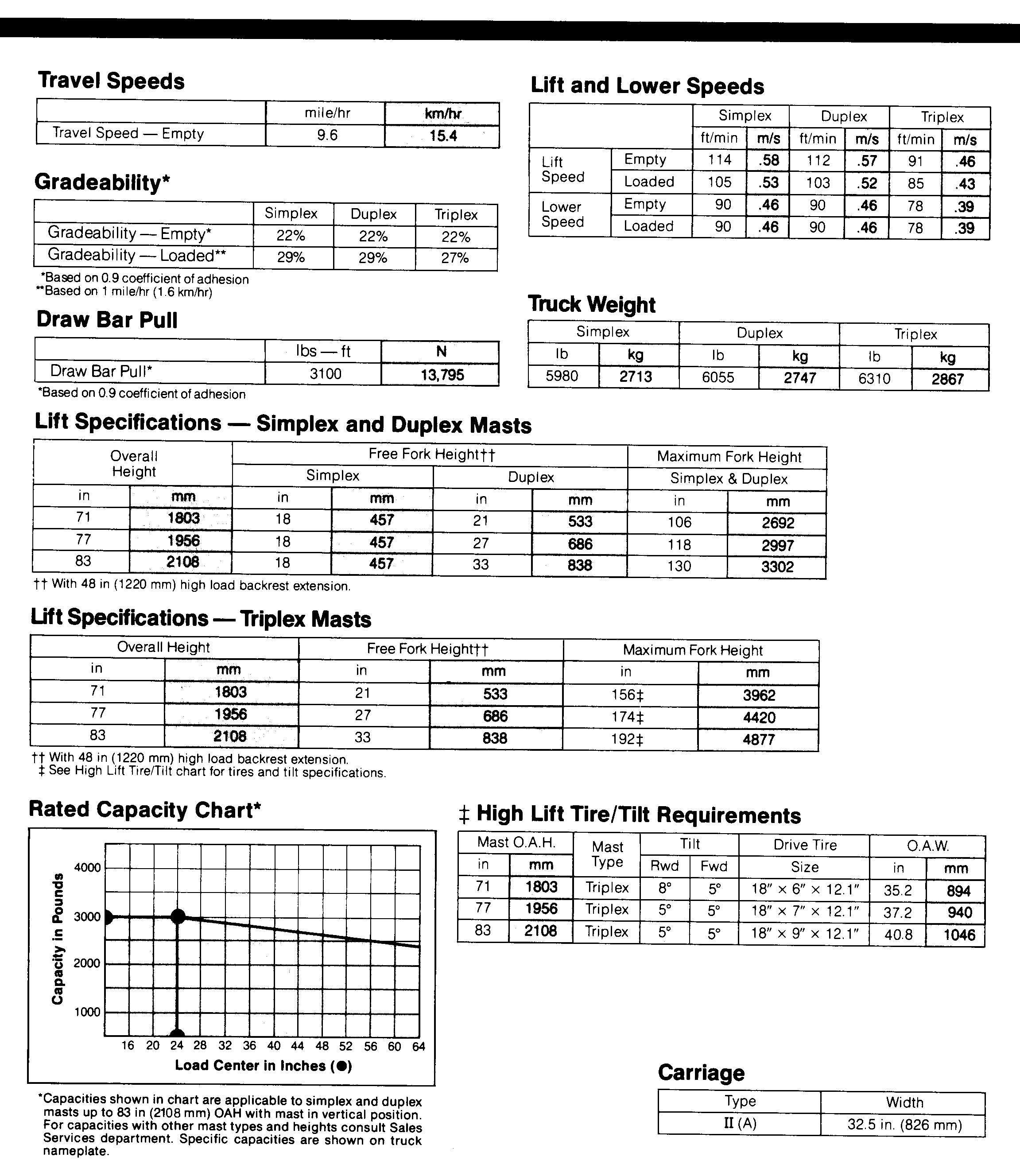

TYPICAL FORK TRUCK SPECIFICATIONS



TYPICAL POWERED PALLET JACK SPECIFICATIONS

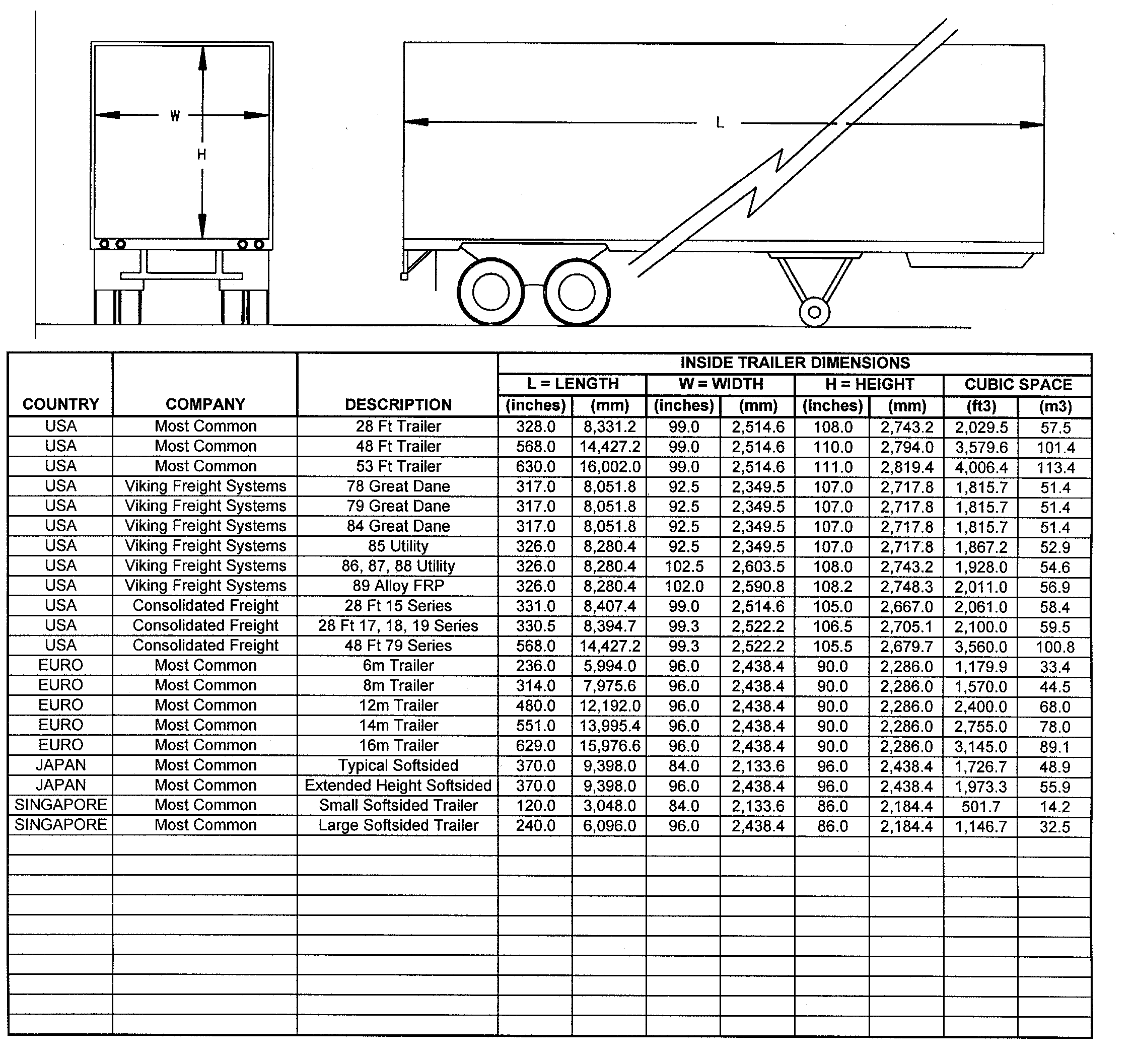

TYPICAL TRUCK TRAILER DIMENSIONS




TYPICAL OCEAN CONTAINER SPECIFICATIONS
