Pallet components

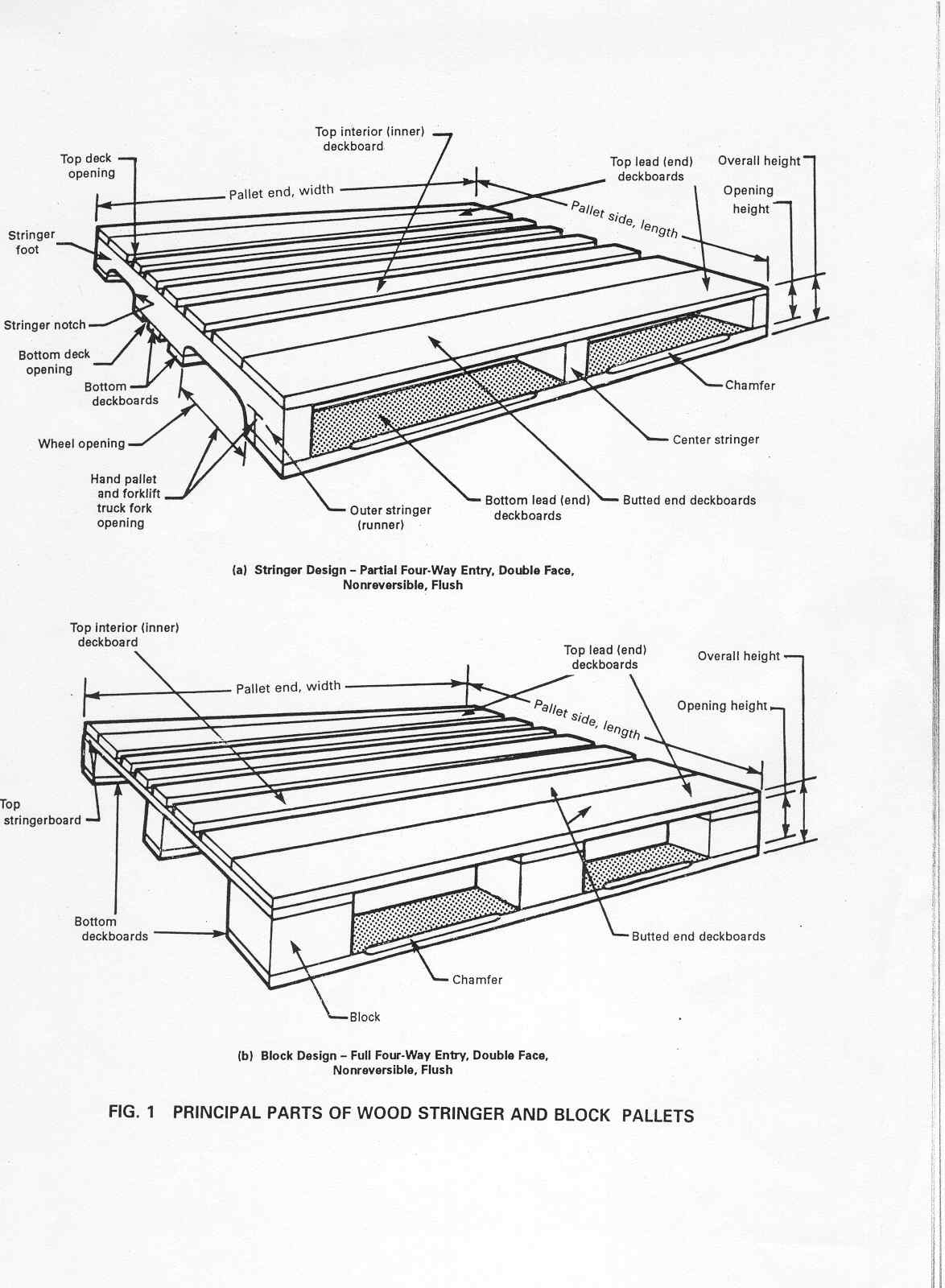

You asked for a picture of stringer and block style pallets. Attached is a jpeg image. The image shows the terms for all components. These are both wood pallets, I don't have a plastic handy but could look if you want to add plastic.

We are working on a chart to differentiate between hardwoods and softwoods. I will forward after a few others trouble shoot it here.

John W. Clarke
Director, Center for Unit Load Design
Virginia Tech
1650 Ramble Road (0503)
Blacksburg, VA  24061
Phone: (540) 231-5370
Fax: (540) 231-8868
www.unitload.vt.edu
